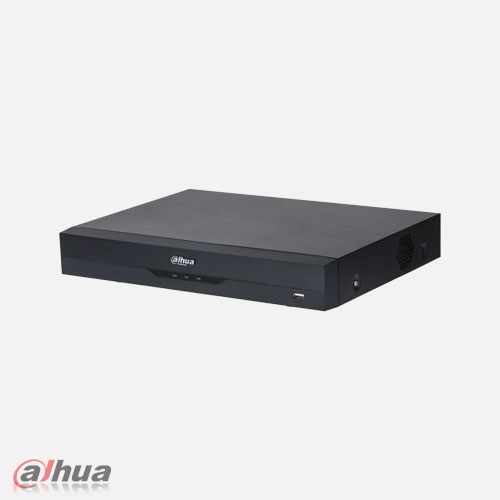

دی وی ار داهوا مـدل DH-XVR5116H-I2

System

Main Processor Embedded Processor
Operating System Embedded LINUX

Perimeter Protection

Performance 2 channels, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire and
intrusion
AI Search Search by target classification (Human, Vehicle)

Face Recognition

Performance
Max 12 face pictures/sec processing
2 channels video stream face recognition, only support
analog camera
Stranger Mode Detect strangers’ faces (not in device’s face database).
Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity
threshold can be set for each target face image.
Database Management
Up to 10 face databases with 10,000 face images in
total. Name, gender, birthday, address, certificate type,
cerificate No., countries&regions and state can be added
to each face picture.
Database Application Each database can be applied to video channels
independently .
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording,
Alarm Out, PTZ Activation, etc.

SMD Plus

Performance 16 channels
AI Search Search by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input 16 channels, BNC
HDCVI Camera Input 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,
720P@25/30fps
AHD Camera Input 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input PAL/NTSC
IP Camera Input 16+8 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA

Recording

Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps);
4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate 32 Kbps–6144 Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tampering),
Alarm, Stop
Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Postrecord: 10 s–300 s

Audio Compression G.711A, G.711U, PCM
AudioSample Rate 8 KHz, 16 bit Per Channel
Audio Bit Rate 64 Kbps Per Channel

Display

Interface 1 HDMI ,1 VGA
Resolution
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720
when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion
detection, Recording

Network

Interface 1 RJ-45 Port (1000 MB)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Alarm input N/A
Relay Output N/A

Playback and Backup

Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is
selected in AI Mode.
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera, Full
Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network

Storage

Internal HDD 1 SATA Port, up to 10TB capacity
eSATA N/A

Auxiliary Interface

USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485 1 Port, for PTZ Control
RS232 N/A

Electrical

Power Supply DC 12V/2A
Power Consumption
(Without HDD) <12W
