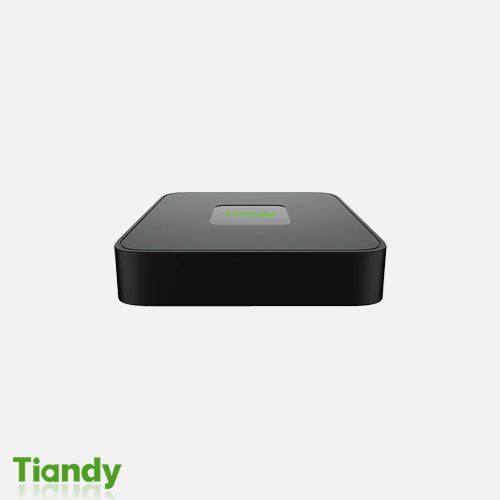

ان وی ار تیاندی مدل TC-R3110 SPEC : I/B/L/V1.1

Input

Access Channel 10
Incoming Bandwidth 60Mbps
Outgoing Bandwidth 40Mbps
Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8,
4CIF(30fps)×10
Playback Decoding Capability 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Third-party Camera Access ONVIF(Profile S/T); RTSP
HDMI Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)
VGA Output VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display Simultaneous Output:
VGA: 1/2A/2B/3/4/5/6/7/8/9/10
HDMI: 1/2A/2B/3/4/5/6/7/8/9/10

Compression Standard

Video S+265; H.265; S+264; H.264
Audio G711A; G711U; ADPCM_DIV4
Stream Type Video; Video & Audio

Network

Network Protocol 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NTP;
RTCP; RTP; RTSP; SRTP; SSH; TLSv1.2; TCP; UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility RTSP; CGI; SDK; P2P
Browser IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Recording Playback

Multi-channel Playback Up to 4 channels
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/
Digital Zoom/Instant Replay

Alarm

General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk;
Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict
Intelligent Analytics
AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Loitering;
Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Smart Alarm; Human/Vehicle
Classification
2025.02.14
VCA Search Early-warning Search

Storage

HDD Capacity Up to 8 TB capacity for each HDD
Disk Group 1 Disk Group
External Port
USB 2×USB2.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 1×SATA interface

General

UI Language English; Spanish; Italian; Turkish; French; Polish; Hebrew; German; Portuguese; Greek
Power Supply DC12V
Power Consumption <10W(HDD not included, idling)
NetWeight 0.4 kg
GrossWeight 0.7 kg
Boundary Dimensions 200(L)200(W)43(H)mm
Package Dimensions 315(L)70(W)235(H)mm
Operating Temperature -10℃~+55℃ (+14℉~+131℉)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20℃~+60℃ (-4℉~+140℉)
Package Kit Network Video Recorder×1; Screw Pack×1; Mouse×1; European Standard Power Adapter(DC12V
1.5A)×1; Instructions×1; Parts List×1
