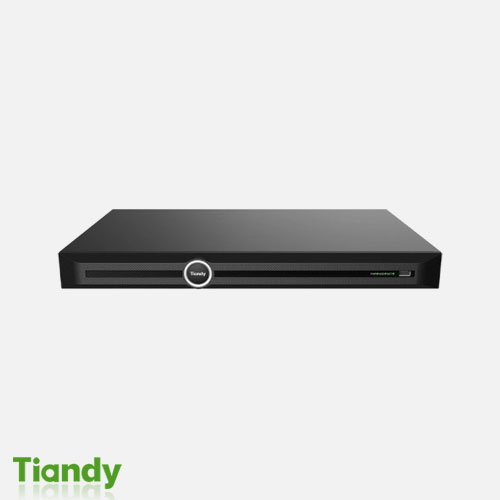

ان وی آر تیاندی مدل TC-R3240 Spec:I/B/N/H

NVR 40ch

Video and Audio

Access Channel 40
Incoming Bandwidth 400Mbps
Outgoing Bandwidth 400Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8,
3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40
Playback Decoding Capability 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8,
3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×16
Third-party Camera Access ONVIF; RTSP
HDMI Output HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz),
(4K)3840×2160(30Hz/60Hz)
VGA Output VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz),
1440×900(60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display Independent Output:
HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Audio Input 1-ch, 3.5mm
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, 3.5mm, using the audio input

Compression

Video S+265; H.265; S+264; H.264
Audio G711A; G711U; AAC; ADPCM_DIV4
Stream Type Video; Video & Audio

Network

Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP;
PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1; SRTP; SSH; SSL; TLSv1.2; TCP/IP; UDP; Unicast;
UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility ONVIF(Profile S/T/G); RTSP; CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Record Playback

Multi-channel Playback 16
Record Mode Manual Recording; Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device, Network
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/
Digital Zoom
Dual Stream Record Yes

Alarm

General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR); Manual Alarm
2024.07.11
Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space
alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal
temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure

Intelligent Analytics

AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking;
Heatmap; Video Abnormal; Audio Abnormal; License Plate Recognition; On Duty Detection; Crowd
Detection; Parking Guard; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to
Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection;
Human Body Temperature Measurement; Smart Motion; Face Recognition; Human/Vehicle
Classification
VCA Search Heatmap; Early-warning Search; Behavior Search; License Plate Search; Safety Helmet Search;
Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search

Face Detection

Face Attributes Gender; Age; Glasses; Face Mask; Body Temp.
Face Recognition
Face Picture Library Up to 300 face libraries
Up to 100000 base images
Face Picture Comparison Face Picture Comparison (Cooperate with facial recognition IPC)

Storage

HDD Capacity Up to 10 TB capacity for each HDD
Disk Group 2 Disk Group
External Port
USB 1×USB2.0; 1×USB3.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA 2×SATA interface
RS232 1×RS232
RS485 1×RS485
Alarm I/O 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC

General

UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French;
Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian
Power Supply DC12V 3.3A
Power Consumption <15W(HDD not included, idling)
NetWeight 2.25Kg
GrossWeight 3.85Kg
Boundary Dimensions 440(L)277(W)47.5(H)mm
Package Dimensions 510(L)150(W)385(H)mm
Operating Temperature -10℃~+55℃ (+14℉~+131℉)
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20℃~+60℃ (-4℉~+140℉)
