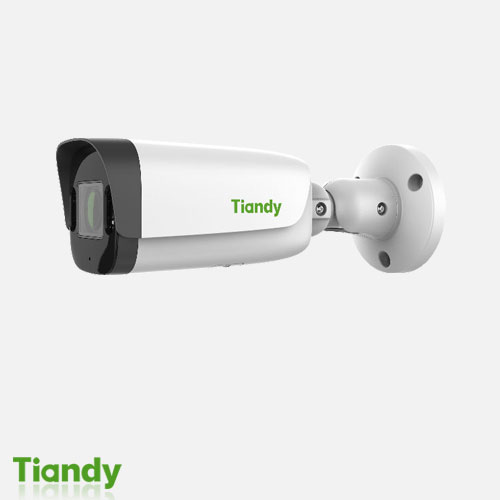

دوربین تیاندی مدل TC-C35UV Spec:W/E/Y/M/S/4MM

Camera 5MP

Image Sensor 1/2.7″CMOS
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR 120dB
S/N >39dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)

Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 109°(H); 59°(V); 125.4°(D)
DORI Distance Detect:56m
Observe:22m
Recognize:11m
Identify:5.6m

Illuminator

IR LEDs 4
IR Distance Up to 50m
Wavelength 850nm
White LEDs 4
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz


Max. Resolution 5MP,2880×1620@30fps
Main Stream PAL:25fps(2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:30fps(2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps( 704×576, 704×288, 352×288)
NTSC:30fps(1704×480, 704×240, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
2024.07.08
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese
characters per region; 16*16/32*32/48*48/64*64
Privacy Mask 4 black static areas
Defog Yes

Feature

General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict
Linkage Method Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter
Rules of Behavior Analyse In 1
Scene 2

Network

ANR Yes
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; SSL; QoS; IPv4;
SSH; Unicast; ARP; FTP
System Compatibility P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface 1*RJ-45 (10/100 Base-T)
Built-in Mic Yes
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes

General

Web Client Language 18 languages
Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/
Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(-40℉~149℉)
Operating Humidity ≤95%RH
Storage Temperature -40℃~65℃(-40℉~149℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 8W; PoE:IEEE 802.3af,Max. 9W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 239(L)90(W)90(H)mm
Package Dimensions 280(L)125(W)140(H)mm
GrossWeight 1.28kg
