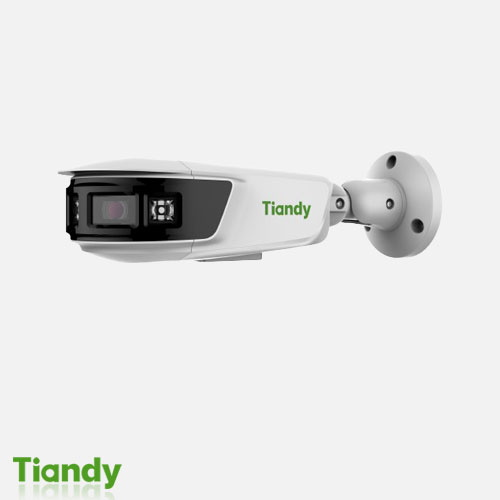

دوربین تیاندی مدل TC-C382V Spec:W/E/Y/S/H/2.8mm

Camera 8MP

Image Sensor Dual 1/2.7″CMOS
Min. Illumination Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night Fixed IR-cut
WDR 120dB
S/N >46dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)

Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.0
Aperture Type Fixed
Field of View 180°(H)±10°; 65°(V)±5°
DORI Distance Detect:56m
Observe:22m
Recognize:11m
Identify:5.6m

Illuminator

White LEDs 3
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz


Max. Resolution 8MP,4640×1728@25fps
Main Stream PAL:25fps(4640×1728, 4096×1520)
NTSC:24fps(4640×1728, 4096×1520)
Sub Stream PAL:25fps(1408×528)
NTSC:24fps(1408×528)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese
characters per region; 16*16/32*32/48*48/64*64/96*96/128*128; Vector/Lattice
2024.06.24
Picture Overlay 1*200×200 size BMP 24 color bit image overlay
Privacy Mask 4 black static areas
Defog Yes

Feature

General Alarm Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server
Exception ; Network Disconnection
Linkage Method Send Email; Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance
Center; Alarm Output
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal
Rules of Behavior Analyse In 1
Scene 8
Early Warning(EW) Yes

Network

ANR Yes
Protocols RTSP; RTMP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP v1v2v3; DHCP; DNS; DDNS; Easy
DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP;
RTP; SRTP; FTP; SFTP
System Compatibility ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone
Remote Connection ≤7
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface 1×RJ-45 (10/100 Base-T)
Audio I/O 1×input, two-core , max. input amplitude:3.3 Vpp, input impedance:1 KΩ, interface type:nonequilibrium; 1×output, two-core, max. output amplitude:3.3 Vpp, output impedance:100 Ω, interface
type: non-equilibrium
Alarm I/O 1×input,TTL,3mA,3.3VDC; 1×output,TTL,30mA,12VDC
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes

General

Web Client Language 19 languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/
Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(-40℉~149℉)
Operating Humidity ≤95%RH
Storage Temperature -40℃~65℃(-40℉~149℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 9W; PoE:IEEE 802.3at,Max. 9.5W
2024.06.24
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 294(L)116(W)90(H)mm
Package Dimensions 360(L)150(W)170(H)mm
GrossWeight 1.1kg
