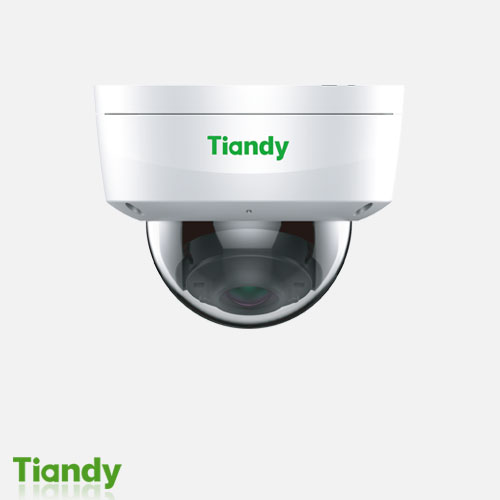

دوربین تیاندی مدل TC-C34KS Spec:I3/E/Y/2.8mm

Camera 4MP

• Image Sensor 1/2.8″ CMOS
• Signal System PAL/NTSC
• Min. Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
• Shutter Time 1s to 1/100,000s
• Day & Night Dual IR Cut Filter with Auto Switch
• Wide Dynamic Range 120dB
• Angle Adjustment pan 0~330°, tilt 0~75°, roate 0~350°

Lens

• Lens Type Fixed
• Focus 2.8mm
• Lens Mount M12
• Aperture F1.6, Fixed
• FOV Horizontal field of view: 92.1°

Illuminator

• IR LEDs 8
• IR Range Up to 30m
• Wavelength 850nm
• White LEDs/Warmlights N/A
• Compression Standard
• Video Compression S+265/H.265/H.264
• Video Bit Rate 32Kbps~6Mbps
• Audio Compression G.711/G.711U/ADPCM
• Audio Bit Rate 8K~48Kbps


• Max. Resolution 2560×1440
• Main Stream
• Sub Stream
• PAL: 25fps (704 576, 704 288, 640 360, 352 288)
• NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
• Third Stream N/A
• Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
• Image Enhancement BLC/3D DNR/HLC
• ROI N/A
• OSD 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as
• Week, Date, Time, Total 3 Regions
• Picture Overlay N/A
• Privacy Mask Yes, 4 regions
• Smart Defog Yes

Feature

• Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
• Video Analytics Tripwire, Perimeter
• Early Warning(EW) N/A
• PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
• NTSC: 25fps (2560×1440), 30fps(2304×1296, 1920×1080, 1280×720)

Network

• ANR N/A
• Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
• System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
• Remote Connection 7
• Client Easy7, EasyLive
• Web Version Web5

Interface

• Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
• Audio I/O Mic in
• Alarm I/O N/A
• Reset Button Yes
• On-board storage Built-in MicroSD card slot, up to 512 GB

General

• Firmware Version –
• Web Client Language
• 15 languagesEnglish, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,Polish, Dutch, Hebraism, Arabic, Vietnamese
• Operating Conditions -40 ～60 , 0～95% RH
• Power Supply DC 12V±25%, PoE (802.3af)
• Power Consumption MAX: 5W (12V) MAX: 6W (PoE)
• Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
• Heater N/A
• Dimensions 120 90mm ( 4.72 3.54inch)
• Weight 0.4Kg (0.88lb)
