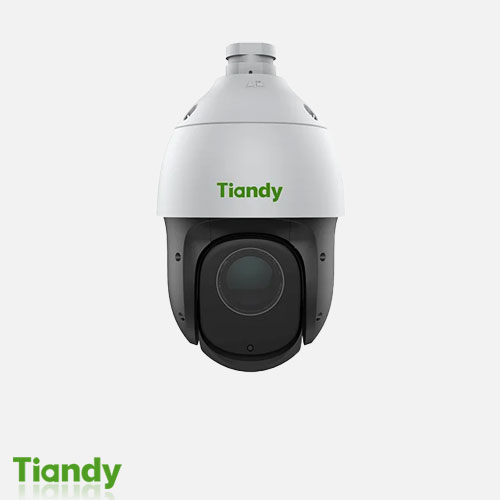

دوربین تیاندی مدل TC-H324S Spec:23X/I/E/C/V3.0

Camera

Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.001lux@ (F1.5,AGC ON),B/W:0lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR 120dB
S/N 42dB

Lens

Focal Length 5mm~115mm
Optical Zoom 23X
Zoom Speed <5s
Aperture Range F1.5~F3.0
Aperture Type Auto(P-Iris)
Field of View 55.8°~3.2°(H); 32.2°~1.8°(V); 61°~3.64°(D)
Focus Control Auto/Semi-auto/Manual
Close Focus Distance 1000mm~1500mm
DORI Distance Detect:1351m Observe:536m Recognize:270m Identify:135m
Pan&Tilt
Pan Range 360°
Pan Speed Manual Speed:0.1°～80°/s
Preset Speed:80°/s
Tilt Range -16°~90° (Default -3°~90°)
Tilt Speed Manual Speed:0.1°～80°/s
Preset:80°/s
3D Position Yes
Preset 500
Cruise 16,up to 32 presets per cruise
Scan 8
Pattern 8,each with 600s memory or 1000 orders
Scheduled Task Preset,Cruise,Scan,Pattern
North Point Yes(Manual setting)
Power-off Memory Yes

Illuminator

IR LEDs 7
IR Distance Up to 150m
Wavelength 850nm
IR Irradiation Angle Yes
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32Kbps~16Mbps
2024.06.24


Max. Resolution 2MP,1920×1080@30fps
Main Stream PAL:25fps(1920×1080,1280×720,640×480,704×576)
NTSC:30fps(1920×1080,1280×720,640×480,704×480)
Sub Stream PAL:25fps(704×576,704×288,640×360,352×288)
NTSC:30fps(704×480,704×240,640×360,352×240)
Third Stream PAL:25fps(352×288)
NTSC:30fps(352×240)
BLC Yes
HLC Yes
AGC Yes
3DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance
ROI 7 Dynamic Areas for Both Main and Sub Stream
OSD 5 regions(Each region can have a maximum of 127 characters ,up to 1 line);
16*16/24*24/32*32/48*48/64*64/adaptable size; Vector/Lattice
Defog Yes
Flip Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip
Regional Exposure Yes
Regional Focus Yes
Demist Yes

Feature

General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address
Conflict; FTP Server Exception ; Network cable disconnected
Linkage Method Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center
Video Analytics Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing;
Heatmap; Video Abnormal

Network

ANR Yes
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1v2v3; DHCP; DNS; DDNS; Easy DDNS; NTP;
SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP;
SFTP
System Compatibility P2P; ONVIF(Profile S/T/G/M); SDK; CGI; Milestone; RTSP; RTMP
Remote Connection ≤2
User/Host Up to 32 users. 4 user levels
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface 1*RJ45 (10/100Base-T)
Reset Button Yes
2024.06.24
On-board Storage Built-in Micro SD card slot,up to 512 GB

General

Web Client Language 19 languages
Simple Chinese/English/Traditional Chinese/Spanish/Italian/ Korean/Turkish/Russian/Thai/ Polish/
French/Dutch/ Hebraism/Vietnamese/Arabic/German/ Ukrainian /Portuguese/Albanian
Operating Temperature -30℃~65℃(-22℉~149℉)
Operating Humidity ≤95%RH
Storage Temperature -30℃~65℃(-22℉~149℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±10%; PoE:IEEE 802.3at
Power Consumption 7.3W(IR OFF) ; 17.6W(IR ON)
Protection Surge4000V; ESD6000V; IP66
Material Metal+plastic
Boundary Dimensions 161mm(D)x276mm(H)
Package Dimensions 260(L)260(W)465(H)mm
GrossWeight 3.7kg
NetWeight 2.1kg
