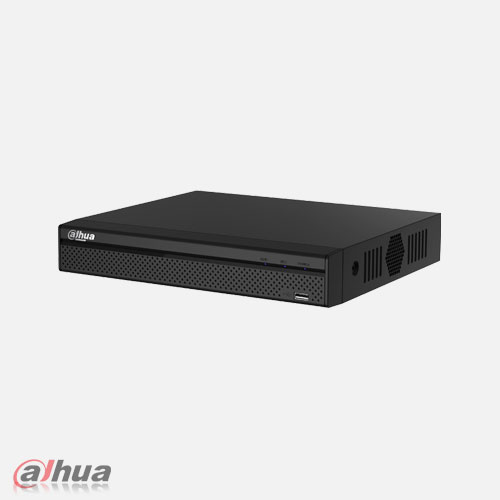

دی وی ار داهوا مـدل XVR5116HS-S2

System

Main Processor Embedded Processor
Operating System Embedded LINUX

Video and Audio

Analog Camera Input 4/8/16 Channel, BNC
HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA

Recording

Compression H.264+/H.264
Resolution 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram: D1/CIF/QCIF(1~15fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tampering),
Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec

Display

Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
16CH: 1/4/8/9/16
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion
detection, Recording

Network

Interface 4/8CH: 1 RJ-45 Port (100M)
16CH: 1 RJ-45 Port (1000M)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP,
DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
(Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer
and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,

Tampering and Diagnosis

Alarm input N/A
Relay Output N/A
Playback and Backup
Playback
4CH: 1/4
8CH: 1/4/9
16CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network

Storage

Internal HDD 1 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 4/8CH:2 USB 2.0
16CH:1 USB 2.0 , 1 USB 3.0
RS232 N/A
RS485 1 Port, for PTZ Control

Electrical

Power Supply DC12V/2A
Power Consumption <10W (Without HDD)

Construction

Dimensions Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight 0.75kg ( 1.7lb) (without HDD)
Gross Weight 1.5kg (3.3lb)
Installation Desktop installation

Environmental

Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo,
Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,
EN 55024
UL: UL 60950-1
