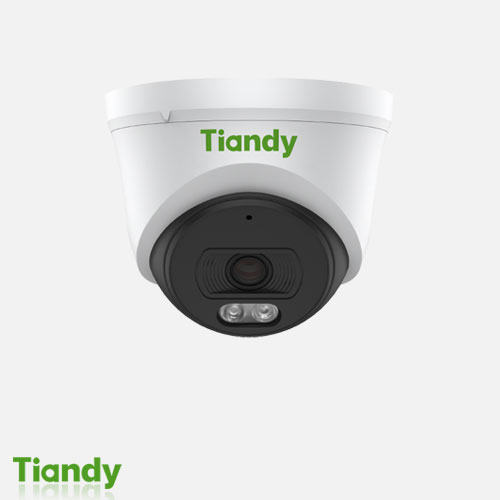

دوربین تیاندی مدل TC-C32XN Spec:I3W/E/Y/2.8mm/V4.2

Camera 2MP

Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N >39dB
Angle Adjustment 0~340°(P); 0~75°(T); 0~360°(R)

Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Field of View 104.9°(H); 56.5°(V); 119.2°(D)
DORI Distance Detect:38.6m
Observe:15.3m
Recognize:7.7m
Identify:3.8m
Illuminator
IR LEDs 2
IR Distance 30m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m

Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz



Main Stream PAL:25fps(1920×1080, 1280×720, 640×480, 704×576)
NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament
Lamp/Lock White Balance
ROI 8 rectangular static areas
2024-03-25
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16
Chinese characters per region; 16*16/32*32/48*48
Privacy Mask 4 black static areas
Defog Yes

Feature

Alarm Trigger Motion Detection; Mask Alarm; IP Address Conflict
Linkage Method trigger warmlight; trigger capture
Video Analytics Tripwire; Perimeter
Rules of behavior analyse in 1
scene
2

Network

Network

Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH;
Unicast; RTSP; FTP
System Compatibility P2P(Mutually exclusive with Profile G); ONVIF Profile S/T; CGI; Milestone
Remote Connection ≤2
Client Easy7 Smart Client
Moblie Client EasyLive Plus

Interface

Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port

General

Web Client Language 19 languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/
French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -30℃~60℃(No turning on the light)
Operating Humidity Humidity 95% or less (no condensation)
Storage Temperature -30℃~60℃
Storage Humidity Humidity 95% or less (no condensation)
Power Supply DC12V±25%,MAX 6.5W; POE 802.3af,MAX 7W
Protection Surge4000V; ESD6000V
Boundary Dimensions 117(L)117(W)96(H)mm
Package Dimensions 140(L)140(W)120(H)mm
GrossWeight 0.35Kg
