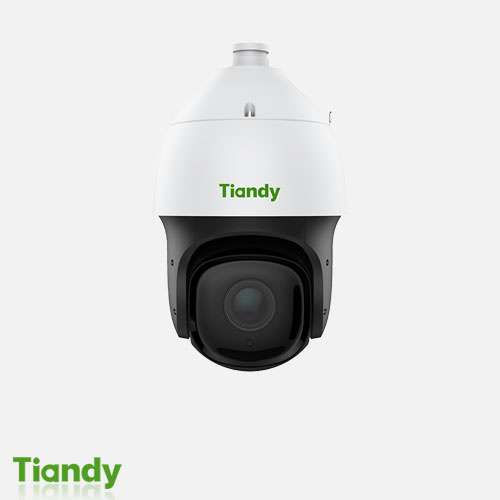

دوربین تیاندی مدل TC-H326S Spec:33X/I/E+/A/V3.0

این مدل دوربین تیاندی دارای لنز وریفوکال 152~4.6 میلیمتری است. دوربین تیاندی مدل TC-H326S Spec:33X/I/E+/A/V3.0 زاویه دید 60.5~2.3 درجه ایی را برای ثبت تصاویر فراهم می‌کند. دوربین TC-H326S 33X/I/E+/A/V3.0 دارای استاندارد IP66 است. استاندارد IP مقاومت بالای دوربین در برابر عواملی مانند رطوبت، گرد و غبار و… را نشان می‌دهد. این دوربین برای فشرده‌سازی تصاویر از فرمت‌های S+265/H.265/H.264 استفاده می‌کند.

Camera 2MP

Image Sensor 1/2.8″ CMOS

Signal System PAL/NTSC

Min. Illumination Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR

Shutter Time 1s to 1/100,000s

Day & Night Dual IR Cut Filter with Auto Switch

Wide Dynamic Range 140dB

Optical Zoom 33×

Digital Zoom 16×

Lens

Focal Length 4.6mm~152mm

Zoom Speed <4s

Angle of View Horizontal: 60.0° (w)~2.3° (t)

Vertical: 34.4° (w)~1.5° (t)

Aperture Range F1.5~F4.0

Pan&Tilt

Pan Range 360°

Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s

Tilt Range -16°~90° (Auto flip)

Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s

3D Position Yes

Presets 500

Preset Accuracy ±0.4°

Scan 8

Cruise 16, up to 32 presets per cruise

Pattern 8, each with 600s memory or 1000 orders

Power-off Memory YesRS-485 Protocols DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS

Illuminator

IR LEDs 10

IR Range Up to 200m

IR Irradiation Angle Adjustable by Zoom

White LEDs N/A

Compression Standard

Video Compression S+265/H.265/H.264/M-JPEG

Video Bit Rate 32Kbps~16Mbps

Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC

Audio Bit Rate 8K～48Kbps


Max. Resolution

Main Stream

Sub Stream

Third Stream

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement BLC/3D DNR/HLC

ROI 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI

OSD

Picture Overlay Yes

Privacy Mask Yes

Smart Defog Yes

Feature

Alarm Trigger Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC

Conflict Detection

Video Analytics

Early Warning(EW) N/A

Auto-Tracking Yes

Face Detection and Analytics

Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring

Face Detection Performance Detects up to 16 faces at the same scene

Face Exposure Brightness Default 35, 1~100 brightness optional

Min. Face Pixel Default 80, 19~1920 optional

Precautionary Alert Three level

Network

Protocols

System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI, P2P

ANR Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed

connection (Only Support Tiandy ANR NVR)

Remote Connection 7

Client Easy7, EasyLive

Web Version web6

Interface

Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port

Audio 1/1

Alarm 8/2

Speaker N/A

Reset Button Yes

On-board storage Built-in Micro SD card slot, up to 256 GB

RS-485 Yes

BNC Yes

Wiper N/A

General

Firmware Version –

Web Client Language

15 languages

Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French,

Polish, Dutch, Hebraism, Arabic, Vietnamese

Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH

Power Supply AC24V±25% / DC 24V±10% / POE++

Power Consumption 22W(IR OFF), 44.2W(IR ON)

Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017

Heater N/A

Dimensions

Weight 5.3kg(11.68lb)
