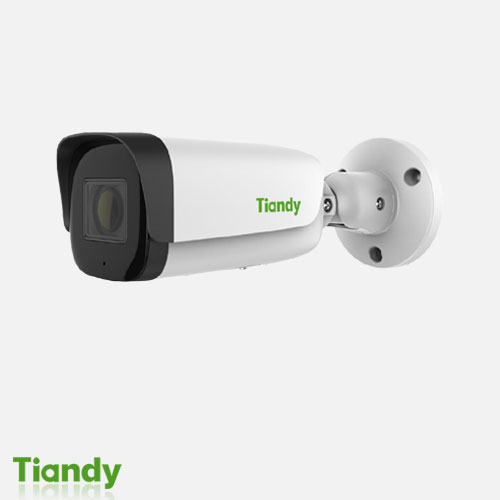

دوربین تیاندی مدل TC-C35US Spec: I8/A/E/Y/M/C/H/2.7-13.5MM

مشخصات فنی محصول

دوربین تیاندی مدل TC-C35US Spec:I8/A/E/Y/M/C/H/2.7-13.5MM زاویه دید 29.2 تا 96.2 درجه‌ایی را برای ثبت تصاویر فراهم می‌کند. دارای استاندارد IP67 بوده که این استاندارد مقاومت بالای دوربین در برابر عواملی مانند رطوبت، گرد و غبار و… را نشان می‌دهد. این دوربین برای فشرده‌سازی تصاویر از فرمت‌های S+265/H.265/H.264 استفاده می‌کند.

Camera 5MP

Image Sensor 1/2.8″CMOS

Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time 1s~1/100000s

Day&Night IR-cut filter with auto switch (ICR)

WDR 120dB

S/N >42dB

Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)

Lens

Lens Type Motorized

Focal Length 2.7~13.5mm

Lens Mount Φ14

Aperture Range F1.6

Field of View 96.2°~29.2°(H); 70.3°~22°(V); 119.1°~36.6°(D)

DORI Distance W:

Detect:54.0m

Observe:21.4m

Recognize:10.8m

Identify:5.4m

T:

Detect:270.0m

Observe:107.1m

Recognize:54.0m

Identify:27.0m

Illuminator

IR LEDs 4

IR Distance 80m

Wavelength 850nm

Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate 32k~6Mbps

Audio Compression G.711A/G.711U/ADPCM_D

Audio Sampling Rate 8kHz/32kHz/48kHz


Main Stream PAL:20fps(2592×1944), 25fps(2592×1520, 2560×1440, 2304×1296, 1920×1080,

1280×720)

NTSC:20fps(2592×1944), 24fps(, 2592×1520, 2560×1440), 30fps(2304×1296, 1920×1080,

1280×720)

Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)

NTSC:30fps(704×480, 704×240, 640×360, 352×240)

BLC Yes

HLC Yes

2024-03-25

AGC Yes

3D DNR Yes

White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament

Lamp/Lock White Balance

ROI 8 rectangular static areas

OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16

Chinese characters per region; 16*16/32*32/48*48/64*64

Privacy Mask 4 black static areas

Defog Yes

Feature

Alarm Trigger Motion Detection; Mask Alarm; Disk Full; Disk R/W Error; IP Address Conflict; Event Input,

Event Output

Linkage Method trigger recording; trigger capture; notify surveillance center

Video Analytics Tripwire; Perimeter

Rules of behavior analyse in 1

scene 2

Network

ANR Yes

Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH;

Unicast; RTSP; FTP

System Compatibility P2P(Mutually exclusive with Profile G); ONVIF Profile S/T/G; CGI; Milestone

Remote Connection ≤2

Client Easy7 Smart Client

Moblie Client EasyLive Plus

Interface

Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port

Audio I/O 1; 1

Alarm I/O 1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC

Reset Button Yes

On-board storage Support microSD/microSDHC/microSDXC card, up to 512 GB

RTC Yes

General

Web Client Language 19 languages

Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/

French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Operating Temperature -35℃~65℃(No turning on the light)

Operating Humidity Humidity 95% or less (no condensation)

Storage Temperature -35℃~65℃

Storage Humidity Humidity 95% or less (no condensation)

Power Supply DC12V±25%,MAX 8W; POE 802.3af,MAX 9W

Protection Surge4000V; ESD6000V; IP67

Boundary Dimensions 239(L)90(W)90(H)mm

Package Dimensions 280(L)125(W)140(H)mm
