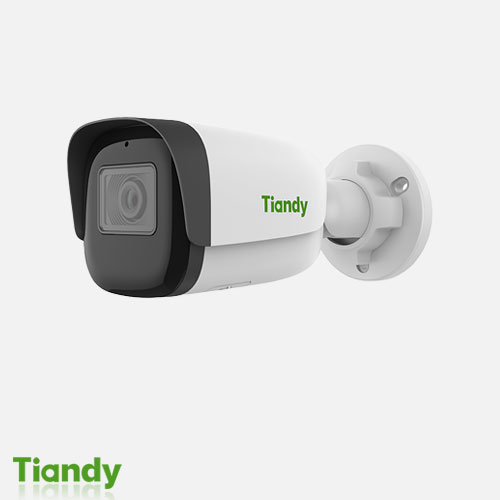

دوربین تیاندی مدل TC-C35WS Spec: I5/E/Y/M/2.8mm/V4.0

Camera 5MP

Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 94.7° (2.8mm)/80° (4mm)

Illuminator

IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps


Max. Resolution 2592×1944
Main Stream
Sub Stream
PAL: 25fps (704 576, 704 288, 640 360, 352 288)
NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature

Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A

Network

ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR)
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
Remote Connection 7
Client Easy7, EasyLive
Web Version Web5

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB

General

Firmware Version –
Web Client Language
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40 ～60 , 0～95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67
Heater N/A
Dimensions
Weight Metal+Plastic: 0.3Kg (0.66lb) Metal: 0.48Kg (1.06lb)
