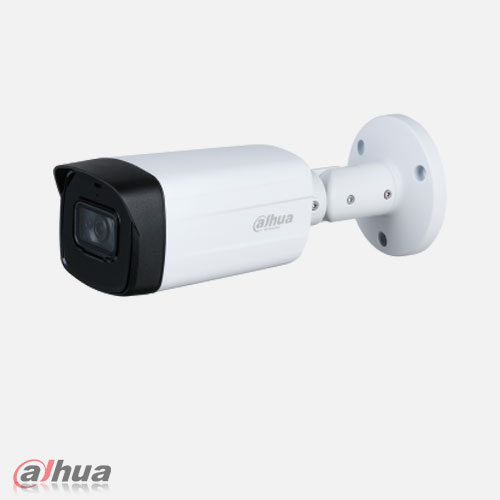

دوربین داهوا مـدل DH-HAC-HFW1220THP-I4

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920 (H) × 1080 (V), 2MP

Electronic Shutter Speed

PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s

Minimum Illumination

0.008Lux/F1.85, 30IRE, 0Lux IR on

IR Distance

Distance up to 40 m (131.23 ft)

IR On/Off Control

Auto; manual

IR LEDs Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.85

Angle of View

2.8 mm: 118° × 103° × 59°

(diagona × horizontal × vertical)
3.6 mm: 103.8° × 87.5° × 47°

(diagonal × horizontal × vertical)
6 mm: 62.4° × 54.7° × 31.3°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Min Photographic Distance

0.5 m/1.0 m/2.0 m (1.64 ft/3.28 ft/6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

37.3 m (122.37 ft)

14.9 m (48.88 ft)

7.5 m

(24.60 ft)

3.7 m

(12.13 ft)

3.6mm

53.3 m (174.86 ft)

21.3 m (69.88 ft)

10.7 m (35.10 ft)

5.3 m

(17.38 ft)

6 mm

80 m (262.46 ft)

32 m (104.98 ft)

16 m

(52.49 ft)

8 m

(26.24 ft)

Video

Video Frame Rate

CVI: 1080P@25fps/30fps; 720P@25fps/30fps; 720@50fps/60fps;
AHD: 1080P@25fps/30fps; 720P@25fps/30fps;
TVI: 1080P@25fps/30fps; 720P@25fps/30fps; 720@50fps/60fps;
CVBS: 960H

Resolution

1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V±30% DC

Power Consumption

Max 3.3W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front face + plastic main body + metal bracket

Dimensions

240.7 mm × 90.7 mm × 90.4 mm (9.48″ × 3.57″ × 3.56″)

Net Weight

410 g (0.90 lb)

Gross Weight

616 g (1.36 lb)
