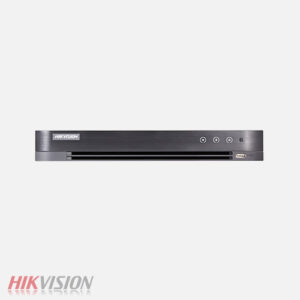

دی وی آر هایک ویژن مـدل DS-7216HGHI-K1

Model   IDS-7216HGHI-K1

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it
can classify human and vehicle, and extremely reduce false alarms caused by objects like
leaves and lights;
Quick search by object or event type is supported;

Recording

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For standard definition stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps

Video and Audio

Video and Audio

IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback 16-ch

Network

Network

Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection 128
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0

General

Power Supply 12 VDC, 1.6 A
Consumption ≤ 10 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight ≤ 1.1 kg (without HDD, 2.4 lb.)
