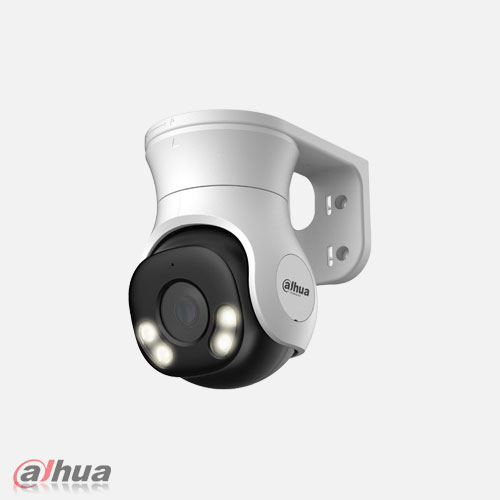

دوربین داهوا مـدل HAC-PT1509A-A-LED

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–90°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111°; V: 57°; D: 131°
3.6 mm: H: 89°; V: 47°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m
(216.54 ft)

26.4 m
(86.61 ft)

13.2 m
(43.31 ft)

6.6 m
(21.65 ft)

3.6 mm

78.0 m
(255.91 ft)

31.2 m
(102.36 ft)

15.6 m
(51.18 ft)

7.8 m
(25.59 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart Light

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 7.7 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66″ × 3.59″ × 5.12″)

Net Weight

0.40 kg (0.88 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
