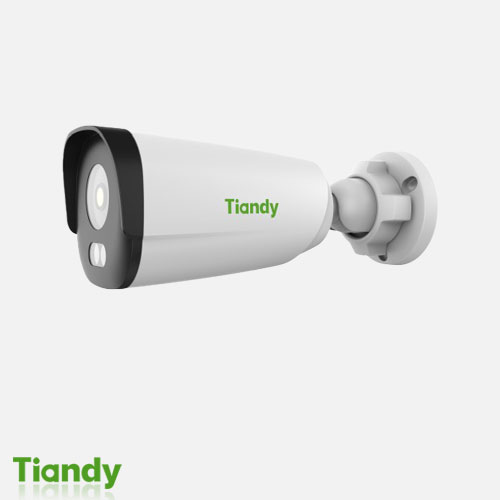

دوربین تیاندی مدل TC-C34GN Spec:I5/E/Y/C/2.8mm/V4.2

Camera 4MP

Image Sensor 1/2.7″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range Digital WDR
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view 103.4°(2.8mm)/88.2°(4mm) ; Vertical field of view: 58.1°(2.8mm)/46.4°(4mm)

Illuminator

IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps



Max. Resolution
Main Stream
Sub Stream
PAL: 25fps (704 576, 704 288, 640 360, 352 288)
NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI Support 8 fixed regions of coding
OSD 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes
2560×1440
PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 25fps(2560×1440), 30fps(2304×1296, 1920×1080, 1280×720)

Feature

Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A

Network

ANR N/A
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G)
Remote Connection 7
Client Easy7, EasyLive Plus
Web Version Web6

Interface

Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button N/A
On-board storage N/A

General

Operating Conditions -30 ～60 , 0～95% RH
Power Supply PoE (802.3af)
Power Consumption MAX: 8W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions
Weight 0.35Kg (0.77lb)
208×81×81mm (8.19×3.19×3.19inch)
