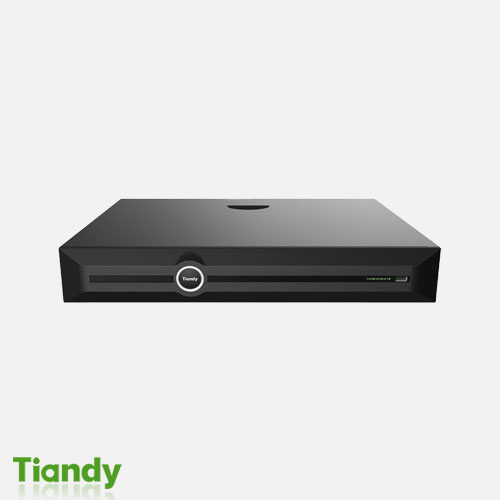

ان وی ار تیاندی مدل TC-R3440 Spec:I/B/N

NVR 40ch

Video and Audio

Access Channel 40
Incoming Bandwidth 400Mbps
Outgoing Bandwidth 400Mbps
Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6,
4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40
Third-party Camera Access ONVIF; RTSP
HDMI Output HDMI:800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz),
1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz),
2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz)
Liveview display Independent Output:
HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
VGA Output VGA:800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz),
1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Audio Input 1-ch, 3.5mm
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, 3.5mm, using the audio input

Compression

Video S+265; H.265; S+264; H.264
Audio G711A; G711U; AAC; ADPCM_DIV4
Stream Type Video; Video & Audio

Network

Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast;
NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2,
TLSv1.3; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P_A
System Compatibility ONVIF(profile T/S/G); RTSP; CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Record Playback

Multi-channel Playback 16
Record Mode Manual recording; Alarm recording; Schedule recording
Storage Method Local HDD
Backup USB storage device, Network
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/
Step/Digital Zoom
Dual Stream Record Dual Stream Record

Alarm

General Alarm Motion; Mask Alarm; Alarm Input(IPC); Video Loss; Alarm Input(NVR); Manual Alarm
Exceptions Alarm IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk group space
alert; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal
temperature of the disk; Hot-spare Exception; Array Exception; IPC voltage abnormal; RTC
failure

Intelligent Analytics

AI by Camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running;
Parking; Heatmap; Lens Dignose; Scene Switch Dignose; Signal Abnormal Detection; Signal
Loss Detection; Plate License Recognition; On Duty Detection; Crowd Detection; Parking
guard; Safety Helmet Detection; Electric vehicle testing; People Counting; Link To Tracking;
Fireworks detection; Environmental temperature measurement; Face Detection; Human body
temperature measurement; Advanced Intelligence; Cooperate with facial recognition
machine
VCA Search Heatmap; Early-warning search; Behavior Search; Plate license search; Search safety helmet;
Thermographic retrieval; Duty search; Electric vehicle retrieval; Facial search

Face Detection

Face Attributes Gender; age; glasses; mouth mask; Body temp.

Face Recognition

Face Picture Library Up to 300 face libraries
Up to 100000 base images
Face Picture Comparison Cooperate with facial recognition machine

Storage

HDD Capacity Up to 10TB capacity for each HDD
Disk Group 4 Disk Group
RAID JBOD, RAID0, RAID1, RAID5, RAID6, RAID10

External Port

USB 1×USB2.0; 1×USB3.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA 4×SATA interface

General

UI Language Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai;
French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian
Power Supply DC12V 5A
Power Consumption <15W(HDD not included, idling)
NetWeight 3.3Kg
GrossWeight 5.05Kg
Boundary Dimensions 440(L)347(W)75(H)mm
Package Dimensions 540(L)175(W)455(H)mm
Operating Temperature -10℃~+55℃
Operating Humidity 10%~90%RH
Storage Temperature -10℃~+55℃
Storage Humidity 10%~90%RH
