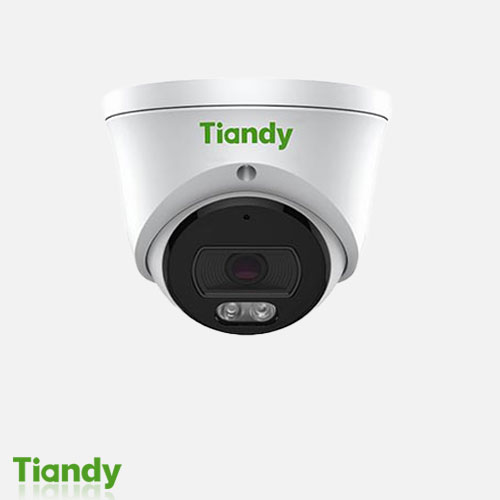

دوربین تیاندی مدل TC-C34XS Spec:I3W/E/Y/2.8MM/V4.2

دوربین تیاندی مدل TC-C34XS Spec:I3W/E/Y/2.8MM/V4.2 زاویه دید 93.5 درجه‌ایی را برای ثبت تصاویر فراهم می‌کند. این دوربین مداربسته تیاندی دارای میکروفن داخلی است. همچنین دوربین تیاندی در این مدل از کارت حافظه نیز پشتیبانی می‌کند. دوربین TC-C34XS I3W/E/Y/2.8MM/V4.2 دارای استاندارد IP66 است. استاندارد IP مقاومت بالای دوربین در برابر عواملی مانند رطوبت، گرد و غبار و… را نشان می‌دهد. این دوربین برای فشرده‌سازی تصاویر از فرمت‌های S+265/H.265/H.264 استفاده می‌کند.

Camera 4MP

Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N >42dB
Angle Adjustment 0~340°(P); 0~75°(T); 0~360°(R)

Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Field of View 93.5°(H); 52.5°(V); 107.2°(D)
DORI Distance Detect:56.0m
Observe:22.2m
Recognize:11.2m
Identify:5.6m

Illuminator

IR LEDs 2
IR Distance 30m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz


Main Stream PAL:25fps(2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:24fps(2592×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:30fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament
Lamp/Lock White Balance
ROI 8 rectangular static areas
2024-03-25
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16
Chinese characters per region; 16*16/32*32/48*48/64*64
Privacy Mask 4 black static areas
Defog Yes

Feature

Alarm Trigger Motion Detection; Mask Alarm; Disk Full; Disk R/W Error; IP Address Conflict
Linkage Method trigger warmlight; trigger recording; trigger capture; notify surveillance center
Video Analytics Tripwire; Perimeter
Rules of behavior analyse in 1
scene2

Network

ANR Yes
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH;
Unicast; RTSP; FTP
System Compatibility P2P(Mutually exclusive with Profile G); ONVIF Profile S/T/G; CGI; Milestone
Remote Connection ≤2
Client Easy7 Smart Client
Moblie Client EasyLive Plus

Interface

Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port
Reset Button Yes(Built-in)
On-board storage Support microSD/microSDHC/microSDXC card, up to 512 GB
RTC Yes

General

Web Client Language 19 languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/
French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(No turning on the light)
Operating Humidity Humidity 95% or less (no condensation)
Storage Temperature -40℃~65℃
Storage Humidity Humidity 95% or less (no condensation)
Power Supply DC12V±25%,MAX 6W; POE 802.3af,MAX 7W
Protection Surge4000V; ESD6000V; IP66
Boundary Dimensions 117(L)117(W)96(H)mm
Package Dimensions 140(L)140(W)120(H)mm
GrossWeight 0.7kg
