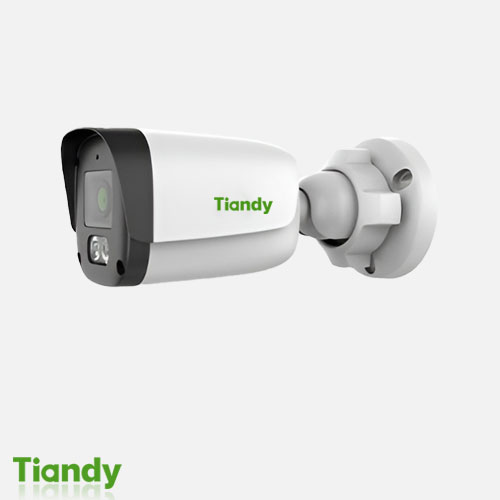

دوربین تیاندی مدل TC-C321N Spec:I3/E/Y/2.8mm

Camera 2MP

Image Sensor 1/3″CMOS
Min. Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N >47.8dB
Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R)

Lens

Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F2.0
Field of View 94.4°(H); 53.2°(V); 108.2°(D)
DORI Distance Detect:41.48m
Observe:16.46m
Recognize:8.3m
Identify:4.1m

Illuminator

IR LEDs 2
IR Distance 30m
Wavelength 850nm

Compression Standard

Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz


Main Stream PAL:25fps(1920×1080, 1280×720, 704×576, 640×480)
NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480)
Sub Stream PAL:25fps(704×576, 704×288, 352×288, 640×360)
NTSC:30fps(704×480, 704×240, 352×240, 640×360)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament
Lamp/Lock White Balance
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16
Chinese characters per region; 16*16/32*32/48*48
Privacy Mask 4 black static areas
Defog Yes
2024-03-25

Feature

Feature

Alarm Trigger Motion Detection; IP Address Conflict
Network
Protocols HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast
System Compatibility ONVIF Profile S/T; CGI; Milestone
Remote Connection ≤2
Client Easy7 Smart Client

Interface

Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port
General
Web Client Language English
Operating Temperature -30℃~60℃(No turning on the light)
Operating Humidity Humidity 95% or less (no condensation)
Storage Temperature -30℃~60℃
Storage Humidity Humidity 95% or less (no condensation)
Power Supply POE 802.3af;MAX 6W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 140(L)60(W)60(H)mm
Package Dimensions 155(L)75(W)85(H)mm
GrossWeight 0.2kg
