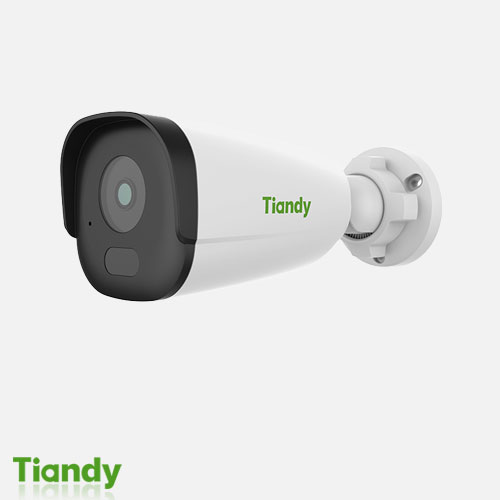

دوربین تیاندی مدل TC-C34GS Spec:I5/E/Y/C/SD/2.8MM/V4.2

Camera 4MP

Image Sensor 1/2.7″ CMOS
Signal System PAL/NTSC
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
WDR Digital WDR
Angle Adjustment Bracket,pan 0~360°,tilt 0~75°,roate 0~360°
Lens
Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6,Fixed
FOV Horizontal field of view 103.8°(2.8mm)/88.2°(4mm) ; Vertical field of view:56.1°(2.8mm)/46.4°(4mm)
Illuminator
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Bit Rate 8K,32K,48Kbps
Max. Resolution 2560×1440
Main Stream PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:24fps(2560×1440),30fps(2304×1296,1920×1080,1280×720)
Sub Stream PAL:25fps(704×576,704×288,640×360,352×288)
NTSC:30fps(704×480,704×240,640×360,352×240)
Third Stream N/A
Image Setting Saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI Support 8 fixed regions of coding
OSD 16×16,32×32,48×48,64×64,adaptable size,Letters Such as Week,Date,Time,Total 1 Regions
Picture Overlay N/A
Privacy Mask Yes,4 regions
Smart Defog Yes
Feature
Alarm Trigger Motion Detection,Mask Alarm,IP Address Conflict
Video Analytics Tripwire,Perimeter
Early Warning(EW) N/A
Network
ANR Yes(Only Support Tiandy ANR NVR)
Protocols RTSP,HTTP,TCP/IP,UDP,UPnP,ICMP,DHCP,DNS,DDNS,Easy DDNS,NTP,IPv4
System Compatibility ONVIF(PROFILE S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G)
Remote Connection 2
Client Easy7,EasyLive Plus
Web Version Web6
AVAILABLE MODEL
TC-C34GS SPEC: I5/E/Y/C/SD/2.8MM/V4.2
TC-C34GS SPEC: I5/E/Y/C/SD/4MM/V4.2

Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Speaker N/A
Reset Button Yes
On-board storage Biult-in MicroSD card slot,up to 512GB
General
Web Client Language 17 languages
English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional
Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian
Operating Conditions -30℃～60℃,0～95% RH
Power Supply PoE(802.3af)
Power Consumption MAX:7W(POE)
Protection IP67, IK10
Heater N/A
Dimensions 208x81x81mm(8.19×3.19×3.19inch)
GrossWeight 0.47Kg(1.03lb)
NetWeight 0.32Kg(0.71lb)
