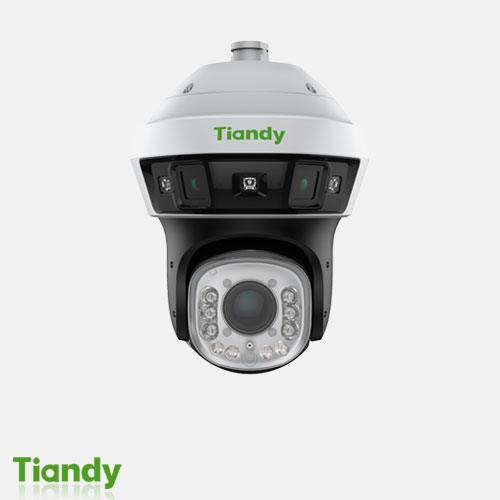

دوربین تیاندی مدل TC-H366V Spec:4MP/25X/IW/E/A/2.8mm

Camera

Image Sensor Panorama:1/1.8″CMOS
Detail:1/2.7″CMOS
Min. Illumination Panorama:0.0001lux
Detail:0.001Lux
Shutter Time Panorama:1s~1/100000s
Detail:1s~1/100000s
Day&Night Panorama:N/A
Detail:IR-cut filter with auto switch (ICR)
WDR Panorama:DWDR
Detail:120dB

Lens

Focal Length Panorama:3.3mm
Detail:4.8mm～120mm
Optical Zoom Panorama:N/A
Detail:25X
Digital Zoom Panorama:N/A
Detail:16X
Zoom Speed Panorama:N/A
Detail:＜5s
Aperture Range Panorama:F1.0
Detail:F1.67~F3.67
Field of View Panorama:190±10°(H)
Detail:58°～2.8°(H); Panorama:75±10°(V)
Detail:33.9°～1.7°(V); Panorama:N/A
Detail:64.8°~3.3°(D)
Focus Control Panorama: N/A
Detail:Auto/Semi-auto/Manual
Iris Control Panorama:Fixed
Detail:Auto
Close Focus Distance Panorama:2000mm
Detail:500mm~5000mm
DORI Distance Panorama:
Detect:45.5m Observe:18.1m Recognize:9.1m Identify:4.6m
Detail:
Detect:Detect:1980m Observe:785m Recognize:396m Identify:198m

Pan&Tilt

Pan Range Detail:360°
Tilt Range -16°～90° (Default -3°～90°)
Tilt Speed Manual Speed:0.1°～120°/s
Preset: 180°/s
3D Position Yes
Preset 500
2024-03-22
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset、Cruise、Scan、Pattern
North Point Yes(Manual setting)
Power-off Memory Yes

Illuminator

IR LEDs Panorama:N/A
Detail:10
IR Distance Panorama:N/A
Detail:150m
Wavelength Panorama:N/A
Detail:850nm
IR Irradiation Angle Panorama:N/A
Detail:Adjustable by Zoom
White LEDs Panorama:3
Detail:4
Whitelight Distance Panorama:30m
Detail:30m
Laser Panorama:N/A
Detail:N/A
Laser Distance Panorama:N/A
Detail:N/A

Compression Standard

Video Compression Panorama:S+265/H.265/H.264/M-JPEG
Detail:S+265/H.265/H.264/M-JPEG
Video Bit Rate Panorama:32Kbps~16Mbps
Detail:32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8KHz/32KHz/48KHz


Max. Resolution Panorama:3840×1568@25fps
Detail:2560×1440@25fps
Main Stream Panorama:
PAL:25fps(3840×1568, 3632×1480)
NTSC:30fps(3840×1568, 3632×1480)
Detail:
PAL:25fps(2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:30fps(2560×1440, 2304×1296, 1920×1080, 1280×720)
2024-03-22
Sub Stream Panorama:
PAL:25fps(1200×488, 960×392)
NTSC:30fps(1200×488, 960×392)
Detail:
PAL:25fps(704×576, 704×288, 352×288, 640×360)
NTSC:30fps(704×480, 704×240, 352×240, 640×360)
Third Stream Panorama:N/A
Detail:
PAL:25fps(704×576, 704×288, 352×288, 640×480)
NTSC:30fps(704×480, 704×240, 352×240, 640×480)
BLC Yes
HLC Yes
AGC Yes
White Balance Yes
ROI Panorama:7 fixed rectangles and 1 dynamic tracking focus area for each main and secondary
stream
Detail:7 rectangular 3D fixed focus areas, supporting 1 rectangular dynamic tracking ROI
OSD Panorama:
5 regions(Each region can have a maximum of 127 characters ,up to 5 lines)
Detail:
5 regions(Each region can have a maximum of 127 characters ,up to 5 lines); Panorama:
16*16/32*32/48*48/64*64/96*96/adaptable size
Detail:
16*16/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice
Defog Yes
Flip Panorama:N/A
Detail:Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip
Regional Exposure Panorama:N/A
Detail:Yes
Regional Focus Panorama:N/A
Detail:Yes
Demist Yes
Privacy Mask Panorama:8 regions
Detail:24 regions(Up to 4 blocks in the same scene)

Feature

Alarm Trigger Panorama:Motion Detection
Detail:Motion Detection; Panorama:Mask Alarm
Detail:Mask Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC
Address Conflict; FTP Server Exception ; Event Input,Event Output; Network cable
disconnected
Linkage Method send email; trigger sound; trigger warmlight; trigger recording; trigger capture; notify
surveillance center
2024-03-22
Video Analytics Panorama:Human/Vehicle Classification
Detail:Human/Vehicle Classification; Panorama:Tripwire
Detail:Tripwire; Panorama:Double Tripwire
Detail:Double Tripwire; Panorama:Perimeter
Detail:Perimeter; Panorama:N/A
Detail:Object Abandon; Panorama:N/A
Detail:Object Lost; Panorama:Heatmap
Detail:N/A; Panorama:N/A
Detail:Loitering; Panorama:N/A
Detail:Running; Panorama:N/A
Detail:Parking; Panorama:N/A
Detail:People Counting; Panorama:N/A
Detail:Crowed; Panorama:N/A
Detail:Safety Helmet Detection; Panorama:N/A
Detail:On Duty Detection; Panorama:Video Abnormal
Detail:Video Abnormal; Panorama:Audio Abnormal
Detail:N/A
Early Warning(EW) Early Warning(EW)
Auto-Tracking Auto-Tracking
Face Mode Panorama:N/A
Detail:Capture facial images

Network

ANR ANR
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1v2v3; DHCP; DNS; DDNS; Easy DDNS;
NTP; SMTP; TLS; SSL; 802.1x; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; ARP; RTP;
SRTP; RTSP; FTP; SFTP; NAS; PING
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection ≤7
User/Host Up to 32 users. 4 user levels
Client Easy7 Smart Client
Moblie Client EasyLive Plus

Interface

Communication Interface 1*RJ45 10M/100M/1000M self adaptive Ethernet port
Audio I/O 1*Input Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω
Alarm I/O 2*Switching; 1,Switching
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General

Web Client Language 19 languages:
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/
Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian/Portuguese/Albanian
Operating Temperature -30℃～65℃(IR OFF)
-30℃～40℃(IR ON)
Operating Humidity 0-95%
2024-03-22
Storage Temperature -30℃～65℃
Storage Humidity 0-95%(non-condensing)
Power Supply AC24V±25%DC24V±10%; POE IEEE802.3BT
Protection Surge protection 4000V; Lightning proof 6000V; IP66
Material Metal and Plastic
Boundary Dimensions 298mm(D)*375mm(H)
Package Dimensions 385(L)*350(W)*540(H)mm
GrossWeight 9.41kg
NetWeight 5.33kg
