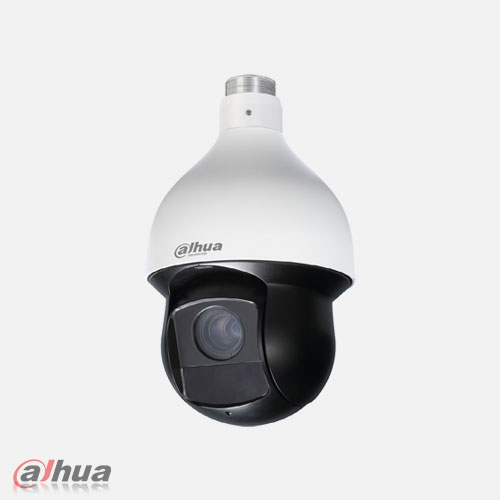

دوربین داهوا مـدل DH-SD59225I-HC-S2

Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6;
0Lux@F1.6 (IR on)
S/N Ratio More than 55dB
IR Distance Distance up to 150m (492ft) -On/Off Control Auto/Manual
IR LEDs 4

Lens

Focal Length 4.8mm~120mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 62.8° ~ 2.6°
Optical Zoom 25x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm

DORI Distance

*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
1613m(5259ft) 646m(2119ft) 323m(1060ft) 161m(528ft)

PTZ

Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after

power failure

Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution 1080P(1920×1080)/720P(1280×720)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P

Video Output 1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/Night Auto(ICR) / Color / B/W
OSD Menu Support
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface 1
Audio Interface 1 channel in
RS485 1
Alarm I/O 2/1

Electrical

Power Supply AC24V/3A(±10%)
Power Consumption 13W, 23W (IR on)

Environmental

Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A

Construction

Casing Metal
Dimensions Φ186(mm) x 309(mm)
Net Weight 3.5kg(7.72lb)
Gross Weight 6.8kg(14.99lb)
