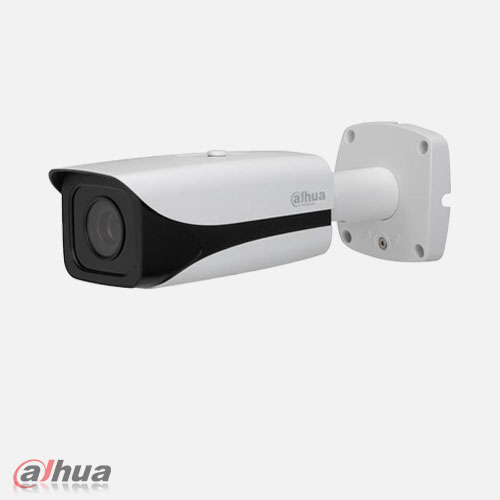

دوربین داهوا مـدل ITC237-PW1B-IRZ

Image Sensor 1/2.8” 2Megapixel Starvis R CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Minimum Illumination 0. 005Lux/F1.6 (Color),0Lux/F1.53(IR on)
Electronic Shutter Speed 1/50~1/10000
IR Distance 3~8m
IR LEDs 4
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in Type
Focal Length 2.7mm~12mm
Max Aperture F1.6
Angle of View H: 101˚~ 36 ˚ V:53 ˚ ~20 ˚
Focus Control Auto
Focus Distance Range 3-8m
Focus width Range 1 lane
Intelligence
LPR function Embedded with lpr engine in the camera
Detection model Loop or video detection
Snapshot Overview and cutout of plate for picture
OSD overlay Time, place,plate number,lane No
White list 10000 records database inside the camera
Barrier control 1 ch relay out to control the barrier
Video
Compression H.265/H.264M/H.264H/H.264B
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576)
Frame Rate Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: 720P/ D1 (1 ~ 25/30fps)
Bit Rate Control CBR VBR
Bit Rate 32 ~ 16384 Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC,HLC,WDR(140db)
Dual Stream Support, Main stream and sub stream
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS,
Interoperability CGI, Onvif
Max. User Access 20
Edge Storage
Micro SD, Max 64GB Status Display Local PC for
Instant Recording
Web Viewer IE9,IE10,IE11, Chrome V33, V41
Management
Software DSS, PMS
Certifications
Certifications CE
FCC

Interface
Audio Interface Input/Output 1 Input / 1 Output
RS485 NA
Alarm 2/1 channel In/Out
Eelectrical
Power Supply DC12V, PoE (802.3af)
Power Consumption <12W (with IR on, motorized lens working)
Environmental
Operating Conditions -40°C~+60°C, Less than 95% RH
Ingress Protection &
Vandal Resistance
IP67, IK10
Construction
Dimensions 273.30mm × 94.8mm× 94.8mm
Net Weight 1.12kg( 1.52 kg with packaging)
